Alloy Safety Hooks
| |
|

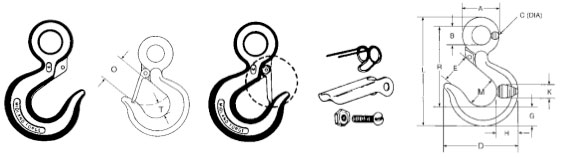

Alloy Safety Hook
Hot forged, heat treated and tempered
- Hook and latch assemblies furnished separately
- All eye type hooks are furnished pre-drilled for latches
- Painted orange
- Built in distortion detectors
- Design factor 5:1
|
| Working load limit* (metic tons)+ |
Dimensions (inches) |
Approx. weight each (lbs.) |
| A |
B |
C |
D |
E |
G |
H |
K |
L |
M |
R |
T |
O |
| 1 |
1.500 |
.750 |
.375 |
3.000 |
1.000 |
.750 |
.875 |
.562 |
4.375 |
1.250 |
3.125 |
.812 |
.875 |
.63 |
| 1 1/2 |
1.750 |
.875 |
.438 |
3.188 |
1.078 |
.844 |
.938 |
.625 |
4.938 |
1.375 |
3.656 |
.938 |
.938 |
.85 |
| 2 |
2.125 |
1.125 |
.500 |
3.625 |
1.125 |
1.000 |
1.156 |
.750 |
5.594 |
1.438 |
4.094 |
1.000 |
1.000 |
1.38 |
| 3 |
2.500 |
1.250 |
.625 |
4.217 |
1.250 |
1.274 |
1.431 |
.940 |
6.567 |
1.625 |
4.668 |
1.188 |
1.125 |
1.92 |
| 5 |
3.063 |
1.563 |
.750 |
5.063 |
1.531 |
1.438 |
1.625 |
1.125 |
7.969 |
2.000 |
5.781 |
1.438 |
1.375 |
3.70 |
| 7 |
3.875 |
2.000 |
.938 |
6.500 |
1.969 |
1.875 |
2.063 |
1.375 |
10.125 |
2.625 |
7.313 |
1.875 |
1.688 |
7.28 |
| 11 |
4.688 |
2.438 |
1.125 |
7.688 |
2.250 |
2.250 |
2.625 |
1.900 |
12.434 |
3.000 |
9.034 |
2.297 |
2.053 |
15.40 |
| 15++ |
5.354 |
2.835 |
1.268 |
8.700 |
2.480 |
2.756 |
2.917 |
2.165 |
13.984 |
3.307 |
10.039 |
2.380 |
2.244 |
22.20 |
| 22++ |
6.614 |
3.504 |
1.555 |
11.102 |
3.346 |
3.228 |
3.516 |
2.598 |
17.126 |
3.937 |
12.480 |
2.500 |
2.992 |
37.60 |
** Stainless steel latch kit available. Latch is designed to retain such items as slings and chains under slack conditions. The latch is not intended to support load.
+Metric ton = 2,204 lbs
++Imported.
|
|
|
|
