Clevis Alloy Grab Hooks Grade 70
|
|
|
|
- Designed to be used with Grade 70 Alloy Chain.
- Heat treated pins.
- Forged in the US from high quality alloy steel.
- Hooks are forged, heat treated and tempered.
- Sizes 5/16 and 3/8 inch.
- Design ultimate strength equals 4 times working load
limit, matching NACM specifications.
- Not recommended for overhead lifting.
|
Hook Size
(in) |
Working Load Limit
(lbs) |

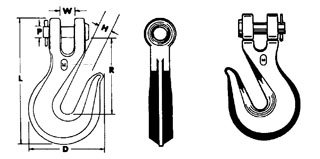

Dimensions in inches (see figure)
|
| W |
D |
H |
L |
R |
Pin |
| 5/16 |
4,700 |
0.38 |
2.31 |
0.44 |
4.00 |
2.34 |
25/64 |
| 3/8 |
6,600 |
0.45 |
2.63 |
0.50 |
4.50 |
2.66 |
31/64 |
|
|
