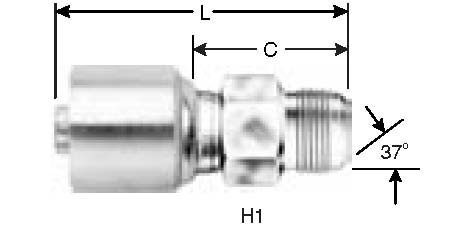

| Descr | | # |  |  | H1 | L | | C | |
|---|
| " | mm | " | " | | mm | " | | mm |
|---|
| 4G-4MJ | G25165-0404 | 7100-10635 | 1/4 | 6.4 | 7/16-20 | 5/8 | 2.19 | | 55.5 | 1.16 | | 29.5 |
|---|
| 4G-5MJ | G25165-0405 | 7100-10645 | 1/4 | 6.4 | 1/2-20 | 1/2 | 2.19 | | 55.5 | 1.16 | | 29.5 |
|---|
| 4G-6MJ | G25165-0406 | 7100-10825 | 1/4 | 6.4 | 9/16-18 | 9/16 | 2.20 | | 56.0 | 1.18 | | 30.0 |
|---|
| 5G-6MJ | G25165-0506 | 7100-00665 | 5/16 | 7.9 | 9/16-18 | 5/8 | 2.26 | | 57.5 | 1.16 | | 29.5 |
|---|
| 6G-6MJ | G25165-0606 | 7100-10675 | 3/8 | 9.5 | 9/16-18 | 5/8 | 2.26 | | 57.5 | 1.17 | | 29.6 |
|---|
| 6G-8MJ | G25165-0608 | 7100-10835 | 3/8 | 9.5 | 3/4-16 | 3/4 | 2.40 | | 61.0 | 1.30 | | 33.1 |
|---|
| 6G-10MJ | G25165-0610 | 7100-10845 | 3/8 | 9.5 | 7/8-14 | 7/8 | 2.52 | | 64.0 | 1.42 | | 36.1 |
|---|
| 8G-8MJ | G25165-0808 | 7100-10705 | 1/2 | 12.7 | 3/4-16 | 13/16 | 2.68 | | 68.0 | 1.20 | | 30.5 |
|---|
| 8G-10MJ | G25165-0810 | 7100-00715 | 1/2 | 12.7 | 7/8-14 | 7/8 | 2.78 | | 70.5 | 1.30 | | 33.0 |
|---|
| 8G-12MJ | G25165-0812 | 7100-00725 | 1/2 | 12.7 | 1 1/16-12 | 1 1/16 | 2.97 | | 75.5 | 1.50 | | 38.0 |
|---|
| 10G-8MJ | G25165-1008 | 7100-00735 | 5/8 | 15.8 | 3/4-16 | 15/16 | 2.83 | | 72.0 | 1.36 | | 34.5 |
|---|
| 10G-10MJ | G25165-1010 | 7100-00745 | 5/8 | 15.8 | 7/8-14 | 15/16 | 2.99 | | 76.0 | 1.52 | | 38.5 |
|---|
| 10G-12MJ | G25165-1012 | 7100-00755 | 5/8 | 15.8 | 1 1/16-12 | 1 1/16 | 2.97 | | 75.5 | 1.50 | | 38.0 |
|---|
| 12G-10MJ | G25165-1210 | 7100-00825 | 3/4 | 19.0 | 7/8-14 | 1 1/16 | 3.68 | | 93.5 | 1.67 | | 42.5 |
|---|
| 12G-12MJ | G25165-1212 | 7100-00765 | 3/4 | 19.0 | 1 1/16-12 | 1 1/16 | 3.68 | | 93.5 | 1.67 | | 42.5 |
|---|
| 12G-14MJ | G25165-1214 | 7100-00775 | 3/4 | 19.0 | 1 3/16-12 | 1 3/16 | 3.58 | | 91.0 | 1.57 | | 40.0 |
|---|
| 12G-16MJ | G25165-1216 | 7100-10785 | 3/4 | 19.0 | 1 5/16-12 | 1 5/16 | 3.62 | | 92.0 | 1.61 | | 41.0 |
|---|
| 16G-14MJ | G25165-1614 | 7100-00835 | 1 | 25.4 | 1 3/16-12 | 1 3/8 | 4.09 | | 104.0 | 1.85 | | 47.2 |
|---|
| 16G-16MJ | G25165-1616 | 7100-00795 | 1 | 25.4 | 1 5/16-12 | 1 3/8 | 4.11 | | 104.5 | 1.88 | | 47.7 |
|---|
| 16G-20MJ | G25165-1620 | 7100-00805 | 1 | 25.4 | 1 5/8-12 | 1 3/4 | 4.29 | | 109.0 | 2.06 | | 52.2 |
|---|
| 20G-20MJ | G25165-2020 | 7100-00815 | 1 1/4 | 31.7 | 1 5/8-12 | 1 3/4 | 4.43 | | 112.5 | 2.07 | | 53.5 |
|---|
|
| |
|
